海思平台接2lane yuv模组更改date_seq无效的问题

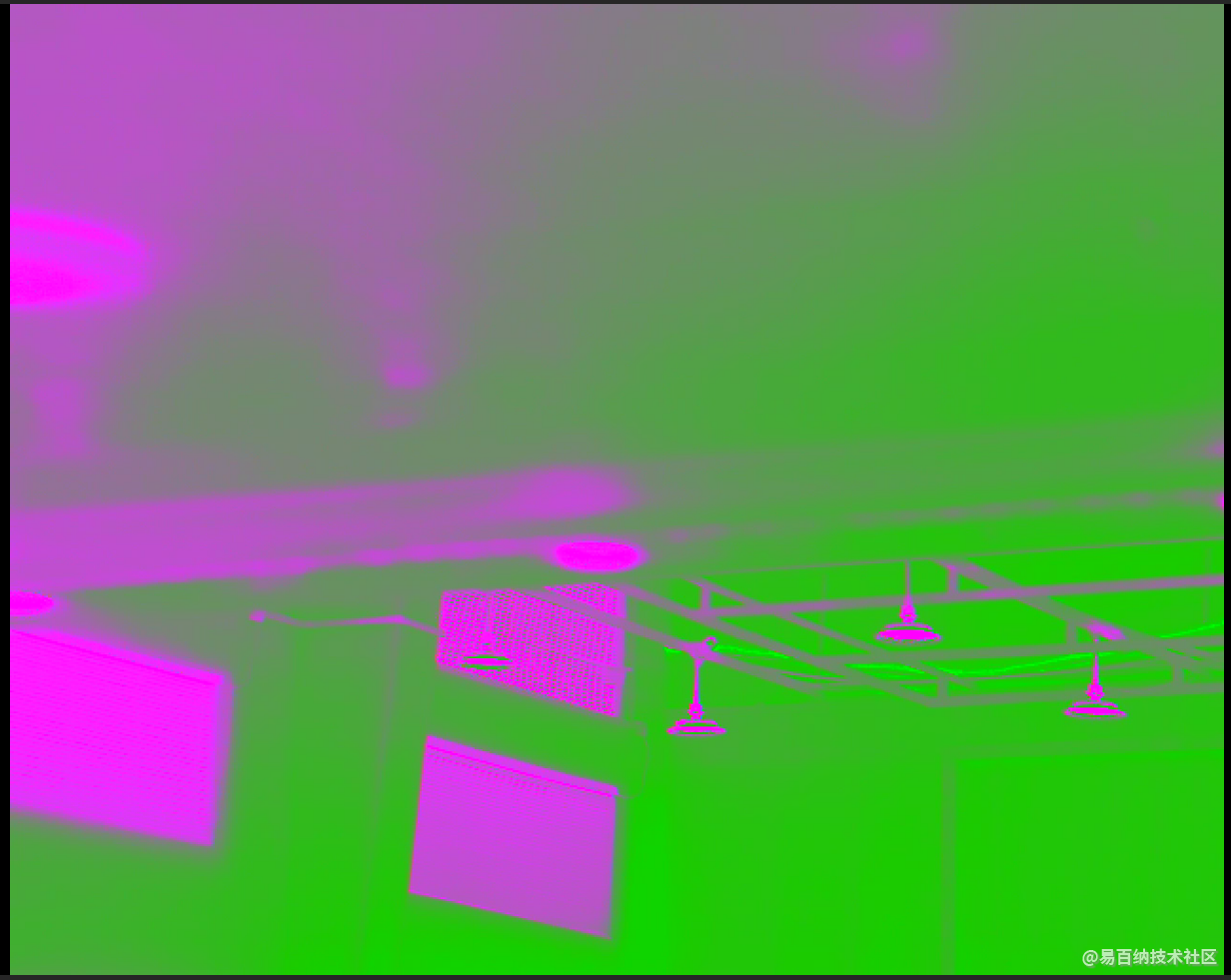

我在海思平台接入了2lane的yuv热成像模组，得到的数据y数据与uv数据是反的，在尝试更改了 data_seq 得到的图像都没有发生变化，看日志是已经改动生效的了， 在ss928 和 19dv500 都是这个问题，不知道有没有大佬遇到过
我来回答
回答17个
时间排序
认可量排序
认可1
该回答已被题主采纳为最佳答案改掩码试试，yuv热成像模组用的什么模式
赞1
把两个掩码调换下试试

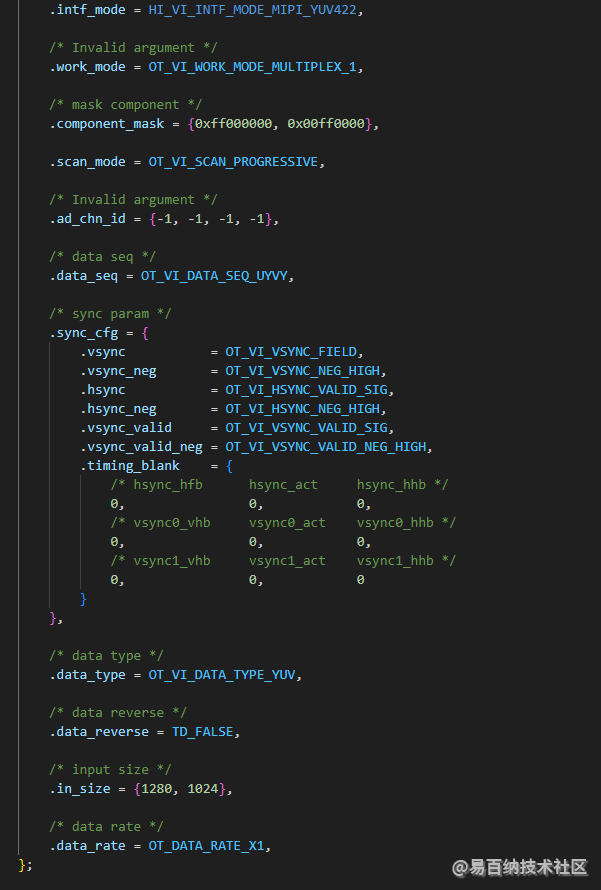

MIPI_YUV模式的UV顺序应该只能用 OT_VI_DATA_SEQ_VUVU或OT_VI_DATA_SEQ_UVUV， 试试这两种；
不行再调换.component_mask = {0xFF000000, 0x00FF0000},//{0x00FF0000, 0xFF000000},

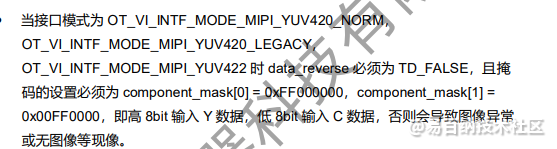

之前bt1120遇到过这个问题，调换掩码解决，也有可能MIPI_YUV模式不能改掩码
认可0
附图看看什么现象
赞0
赞1
输出的是温度数据模式还是图像数据模式，温度数据的话改YUV顺序是没用的，图像模式的话改下伪彩看看
赞0
图像模式的，主要是改了顺序也一点变化没有，改伪彩也对不上
赞0
可以了，多谢大佬
